CMC Magnetics

vbimport

#1

Burner: LTR-52246S (6S07) 700 MB ISO
This Disc is designed for CD-RW/COMBO Drive Only.
Disc Type, Material = CD-R, Phthalocyanine
ATIP Lead-in = 97m 26s 66f
Norminal Capacity = 702.83MB (79m 59s 74f)
Disc Manufacturer maybe = CMC,Imation
SMART-BURN Speed Limit = 52X

Media: Philips 48x, Made in Tawian

ouch… I didn’t even let it finish it was taking forever…


#2

Drive: LTR-52246S 6S07
Disc Type, Material = CD-R, Phthalocyanine
ATIP Lead-in = 97m 26s 66f
Norminal Capacity = 702.83MB (79m 59s 73f)
Disc Manufacturer maybe = CMC,Imation
SMART-BURN Speed Limit = 52X

sold as Imation 48x


#3

Drive: LTR-52246S 6S07
Disc Type, Material = CD-R, Phthalocyanine
ATIP Lead-in = 97m 26s 66f
Norminal Capacity = 702.83MB (79m 59s 74f)
Disc Manufacturer maybe = CMC,Imation
SMART-BURN Speed Limit = 52X

Sold as Precision 40x
Burning at 52x is not a good idea, problems crop up after about 65 minutes.

This is a 40x burn though, and it looks good.


#4

ATIP: 97m 26s 60f
Disc Manufacturer: CMC Magnetics Corp.
Assumed Dye type: Cyanine (Type 0)
Media type: CD-Recordable
Recording Speeds: min. unknown - max. unknown
nominal Capacity: 702.83MB (79m 59s 74f / LBA: 359849)

Sold as CompUSA-8x-80min:

I am providing these results from CDRs burned AT LEAST 2 years or so ago. They have been kept in CD Cases or CD Wallets for the duration, and NO physical damage is on them. All CDs were burned with either a Ricoh 6200A (latest firmware), Ricoh 7040A (latest firmware), or Ricoh 7200A (latest firmware). Some tests are not quite the full capacity (74 or 80 min), but are relatively close. These results may be helpful to those who have stored media on these specific mediums and are woried about the CDRs data corruption.

SuperG


#5

ATIP: 97m 26s 60f
Disc Manufacturer: CMC Magnetics Corp.
Assumed Dye type: Cyanine (Type 0)
Media type: CD-Recordable
Recording Speeds: min. unknown - max. unknown
nominal Capacity: 658.89MB (75m 00s 00f / LBA: 337350)

Sold as Imation-4x-74min:

I am providing these results from CDRs burned AT LEAST 2 years or so ago. They have been kept in CD Cases or CD Wallets for the duration, and NO physical damage is on them. All CDs were burned with either a Ricoh 6200A (latest firmware), Ricoh 7040A (latest firmware), or Ricoh 7200A (latest firmware). Some tests are not quite the full capacity (74 or 80 min), but are relatively close. These results may be helpful to those who have stored media on these specific mediums and are woried about the CDRs data corruption.

SuperG


#6

ATIP: 97m 26s 66f
Disc Manufacturer: CMC Magnetics Corp.
Reflective layer: Dye (Short strategy; e.g. Phthalocyanine)
Media type: CD-Recordable
Recording Speeds: min. unknown - max. unknown
nominal Capacity: 702.83MB (79m 59s 74f / LBA: 359849

Sold as Imation-16x-80min:

I am providing these results from CDRs burned AT LEAST 2 years or so ago. They have been kept in CD Cases or CD Wallets for the duration, and NO physical damage is on them. All CDs were burned with either a Ricoh 6200A (latest firmware), Ricoh 7040A (latest firmware), or Ricoh 7200A (latest firmware). Some tests are not quite the full capacity (74 or 80 min), but are relatively close. These results may be helpful to those who have stored media on these specific mediums and are woried about the CDRs data corruption.

SuperG


#7

ATIP: 97m 26s 66f
Disc Manufacturer: CMC Magnetics Corp.
Reflective layer: Dye (Short strategy; e.g. Phthalocyanine)
Media type: CD-Recordable
Recording Speeds: min. unknown - max. unknown
nominal Capacity: 702.83MB (79m 59s 74f / LBA: 359849)

Sold as PNY-16x-80min:

I am providing these results from CDRs burned AT LEAST 2 years or so ago. They have been kept in CD Cases or CD Wallets for the duration, and NO physical damage is on them. All CDs were burned with either a Ricoh 6200A (latest firmware), Ricoh 7040A (latest firmware), or Ricoh 7200A (latest firmware). Some tests are not quite the full capacity (74 or 80 min), but are relatively close. These results may be helpful to those who have stored media on these specific mediums and are woried about the CDRs data corruption.

SuperG


#8

ATIP: 97m 26s 66f
Disc Manufacturer: CMC Magnetics Corp.
Reflective layer: Dye (Short strategy; e.g. Phthalocyanine)
Media type: CD-Recordable
Recording Speeds: min. unknown - max. unknown
nominal Capacity: 702.83MB (79m 59s 74f / LBA: 359849)

Sold as Staples-24x-80min:

I am providing these results from CDRs burned AT LEAST 2 years or so ago. They have been kept in CD Cases or CD Wallets for the duration, and NO physical damage is on them. All CDs were burned with either a Ricoh 6200A (latest firmware), Ricoh 7040A (latest firmware), or Ricoh 7200A (latest firmware). Some tests are not quite the full capacity (74 or 80 min), but are relatively close. These results may be helpful to those who have stored media on these specific mediums and are woried about the CDRs data corruption.

SuperG


#9

Drive- 48125W - VS08, 700MB image
This Disc is designed for CD-RW/COMBO Drive Only.
Disc Type, Material = CD-R, Phthalocyanine
ATIP Lead-in = 97m 26s 66f
Norminal Capacity = 702.83MB (79m 59s 74f)
Disc Manufacturer maybe = CMC,Imation
SMART-BURN Speed Limit = 48X

Oh-oh, here we go! This was sold as Staples 48x media.

These fail completely at 48x. The Quality Check display is a little difficult to read here, but there are red sectors at the end. The disc also failed the file test in ScanDisc, and the last 4-5 sectors are unreadable in ScanDisc also.


#10

Drive- 48125W - VS08, 700 MB image
This Disc is designed for CD-RW/COMBO Drive Only.
Disc Type, Material = CD-R, Phthalocyanine
ATIP Lead-in = 97m 26s 66f
Norminal Capacity = 702.82MB (79m 59s 71f)
Disc Manufacturer maybe = CMC,Imation
SMART-BURN Speed Limit = 48X

These were sold as TDK 48x media.


#11

Drive- 48125W - VS08, 700MB image
This Disc is designed for CD-RW/COMBO Drive Only.
Disc Type, Material = CD-R, Phthalocyanine
ATIP Lead-in = 97m 26s 66f
Norminal Capacity = 702.83MB (79m 59s 74f)
Disc Manufacturer maybe = CMC,Imation
SMART-BURN Speed Limit = 48X

Sold as Imation 48x. These carry the same ATIP as some TDK discs I also tested, but the results are very different.

This media would certainly fall into the “crap” category.


#12

Drive- 48125W - VS08, 700MB image
This Disc is designed for CD-RW/COMBO Drive Only.
Disc Type, Material = CD-R, Phthalocyanine
ATIP Lead-in = 97m 26s 66f
Norminal Capacity = 702.83MB (79m 59s 73f)
Disc Manufacturer maybe = CMC,Imation
SMART-BURN Speed Limit = 48X

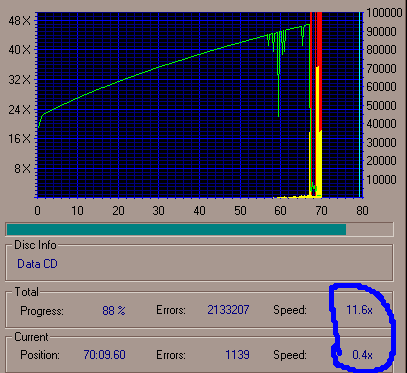

Sold as Phillips 48x.
Back to the same ATIP as the TDK and Imation. But this is clearly not the same media as either of those.

This is the worst media I have seen for a while. Note the read speeds and red (unreadable) sectors. My 48125W slowed to 0.4 speed and was still trying to read this mess when I aborted the test. I burned a second CDR just because I was having trouble believing this media could be so bad, and it came out much the same. I also confirmned this test in my LTD-166D DVD drive, same results.


#13

Drive: LTR-52246S, 6S02, 700MB image
This Disc is designed for CD-RW/COMBO Drive Only.
Disc Type, Material = CD-R, Phthalocyanine
ATIP Lead-in = 97m 26s 66f
Norminal Capacity = 702.82MB (79m 59s 71f)
Disc Manufacturer maybe = CMC,Imation
SMART-BURN Speed Limit = 52X

Sold as TDK 48x
This media will not burn all the way to 52x. At about 96%, (49x), the drive slows and finishes the burn at 40x. Total burn time: 2:40


#14

Yamaha F1E 1.0g 700MB audio

Drive Type = CD-RW
Disc Type = CDR (A+)
Material = Phthalocyanine
Lead In = 97:26:66
Lead Out = 79:59:73
Nominal Capacity = 702.83MB (79m 59s 73f/LBA:359848)
Manufacturer Maybe = CMC
Smart-Burn Speed Limit = Wrt(52X),Rd(52X)

Drive Type = CD-RW
Disc Type = CDR (A+)
Lead In = 97:26:66
Lead Out = 79:59:73
Nominal = 702.83MB (79m 59s 73f/LBA:359848)
Manufacturer = CMC Magnetics Corporation
Cur. Speed = Wrt(52X),Rd(52X)

sold as Phillips 48x


#15

LTR-52327S QS08 700MB Data

This Disc is designed for CD-RW/COMBO Drive Only.
Disc Type, Material = CD-R, Phthalocyanine
ATIP Lead-in = 97m 26s 66f
Norminal Capacity = 702.82MB (79m 59s 71f)
Disc Manufacturer maybe = CMC,Imation

Sold as Philips 48x

Read back in LTR-48125W VS0D at 40x



#16

LTR-52327S QS0A 700MB Data

This Disc is designed for CD-RW/COMBO Drive Only.
Disc Type, Material = CD-R, Phthalocyanine
ATIP Lead-in = 97m 26s 66f
Norminal Capacity = 702.82MB (79m 59s 71f)
Disc Manufacturer maybe = CMC,Imation

Sold as Philips 48x

Read back in LTR-48125W VS0D at 40x

This disc was burned at 40x because SMART-BURN limited the disc to 40x with firmware QS0A (it allowed 52x with earlier firmware versions).



#17

Burned in LTR-40125W , ZS0J , 74 min audio
Reading in LTR-52327S , QS0A
Drive Type = CD-RW
Disc Type = CDR (A+)
Material = Phthalocyanine
Lead In = 97:26:66
Lead Out = 79:59:74
Nominal Capacity = 702.83MB (79m 59s 74f/LBA:359849)
Manufacturer Maybe = CMC(99min)
Smart-Burn Speed Limit = Wrt(24X),Rd(52X)

Sold as Imation 24x
This is an old audio burn, about 2 years old.


#18

Recorder: LiteON LTR-32123S Firmware: XS0X
Media: CMC/Mr. Data 1-8x Compatible
Recording Speed: 32x (Z-CLV)
Read Speed in KProbe: Maximum

This Disc is designed for CD-RW/COMBO Drive Only.
Disc Type, Material = CD-R, Phthalocyanine
ATIP Lead-in = 97m 26s 66f
Norminal Capacity = 702.83MB (79m 59s 74f)
Disc Manufacturer maybe = CMC,Imation
SMART-BURN Speed Limit = 32X

LITE-ON LTR-32123S
Drive Type = CD-RW
Disc Type = CDR (A+)
Lead In = 97:26:66
Lead Out = 79:59:74
Nominal = 702.83MB (79m 59s 74f/LBA:359849)
Manufacturer = CMC Magnetics Corporation
Cur. Speed = Wrt(32X),Rd(40X)

COMMENTS:
I was really surprised to see how well these discs performed at four times their rated speed!!!



#19

LTR52246S 6S0F 700MB Data

Drive Type = CD-RW
Disc Type = CDR (A+)
Material = Phthalocyanine
Lead In = 97:26:66
Lead Out = 79:59:73
Nominal Capacity = 702.83MB (79m 59s 73f/LBA:359848)
Manufacturer Maybe = CMC
Smart-Burn Speed Limit = Wrt(52X),Rd(52X)

Sold as Philips 48x
SW - Nero 6


#20

TEAC W540E 1.0K 700MB Data

Drive Type = CD-RW
Disc Type = CDR (A+)
Material = Phthalocyanine
Lead In = 97:26:66
Lead Out = 79:59:71
Nominal Capacity = 702.82MB (79m 59s 71f/LBA:359846)
Manufacturer Maybe = CMC
Smart-Burn Speed Limit = Wrt(52X),Rd(52X)

Sold as Philips 48x
SW - Nero 5.5
