Ritek DVD+R DL

Blank DVD Media Tests Discuss, Ritek DVD+R DL at Blank Media forum; LiteOn LDW-451S@SOHW-832S, VSC3 (based on VS0A), 6.46 GB movie Code:

Old Posted: 17-07-2004
code65536's Avatar
code65536 (CDFreaks Resident)
Posts: 5,984
  • Find More Posts by code65536
LiteOn LDW-451S@SOHW-832S, VSC3 (based on VS0A), 6.46 GB movie

Code:
VID                                 	LITE-ON
PID                                 	DVDRW SOHW-832S
F/W Revision                        	VSC3
Date Code
FlashROM Manufacturer ID            	C2
FlashROM Device ID                  	37
FlashROM Type                       	MXIC(MX29LV008B)(+3.3V)
Region                              	1
Vendor Resets Available             	4
User Resets Available               	4
RPC Scheme                          	RPC II
Burst Rate                          	26.65 MB/S
Disc Type                           	DVD+R DL
Book Type                           	DVD-ROM
Manufacturer                        	RiTEK Corporation
Media ID                            	RITEKD01
Protection System                   	None
Region                              	1,2,3,4,5,6,7,8
Capacity                            	6.46 GB
Layer 0 Capacity                    	3.23 GB
Free Size                           	0.00 GB
Free Blocks                         	0
Number of Layers                    	2
Track Path                          	OTP
Linear Density                      	0.293 um/bit
Track Density                       	0.74 um/track
Maximum Read Speed                  	10.3x
Maximum Write Speed                 	2.4x
Current Write Speed                 	2.4x CLV
Write Speed Performance Descriptor 1	2.4x CLV
--------------------------------------------------------------------------
0000 : e1 0f 32 10 00 03 00 00  00 fc ff ff 00 22 d7 ff   ..2.........."..
0010 : 00 00 00 52 49 54 45 4b  00 00 00 44 30 31 01 40   ...RITEK...D01.@
0020 : 25 25 37 00 00 28 64 00  28 64 14 14 0a 0a 0a 0a   %%7..(d.(d......
0030 : 01 00 00 00 00 19 1b 0b  0b 0e 0f 01 00 00 00 00   ................
Sold as: RiData 2.4x +R DL, Jewel Case, Newegg customer appreciation gift
Burn speed: 2.4x
Software: DVD Decrypter 3.2.3.0
Misc: Booktype set to DVD-ROM


Burn and data verification log:
Code:
I 14:31:33 Operation Started!
I 14:31:33 Source File Sectors: 3,389,376 (MODE1/2048)
I 14:31:33 Source File Size: 6,941,442,048 bytes
I 14:31:33 Destination Device: [1:1:0] LITE-ON DVDRW SOHW-832S VSC3 (E:)
I 14:31:33 Destination Media Type: DVD+R DL (Disc ID: RITEK-D01-01) (Speeds: 2.4x)
I 14:31:33 Destination Media Sectors: 4,173,824
I 14:31:33 Write Mode: DVD
I 14:31:33 Write Speed: MAX
I 14:31:33 Test Mode: No
I 14:31:33 BURN-Proof: Enabled
I 14:31:33 L0 Data Zone Capacity: 1,694,696
I 14:33:01 Filling Buffer...
I 14:33:05 Writing LeadIn...
I 14:33:08 Writing Image...
I 15:08:38 Synchronising Cache...
I 15:08:39 Closing Track...
I 15:08:40 Finalising Disc...
I 15:09:36 Operation Successfully Completed! - Duration: 00:38:03
I 15:09:36 Average Write Rate: 3,184 KB/s (2.3x) - Maximum Write Rate: 3,278 KB/s (2.4x)
I 15:09:36 Cycling Tray before Verify...
W 15:09:41 Waiting for device to become ready...
I 15:09:57 Device ready!
I 15:09:57 Operation Started!
I 15:09:57 Source Device: [1:1:0] LITE-ON DVDRW SOHW-832S VSC3 (E:)
I 15:09:57 Source Media Type: DVD+R DL (Disc ID: RITEK-D01-01) (Speeds: 2.4x)
I 15:09:57 Verifying Sectors...
I 15:26:43 Operation Successfully Completed! - Duration: 00:16:46
I 15:26:43 Average Verify Rate: 6,738 KB/s (4.9x) - Maximum Verify Rate: 9,525 KB/s (6.9x)
BLER scan:



Standalone playback:
  • JVC XV-S65: Playback okay for both layers
  • Apex AD-1010W: Playback okay for both layers

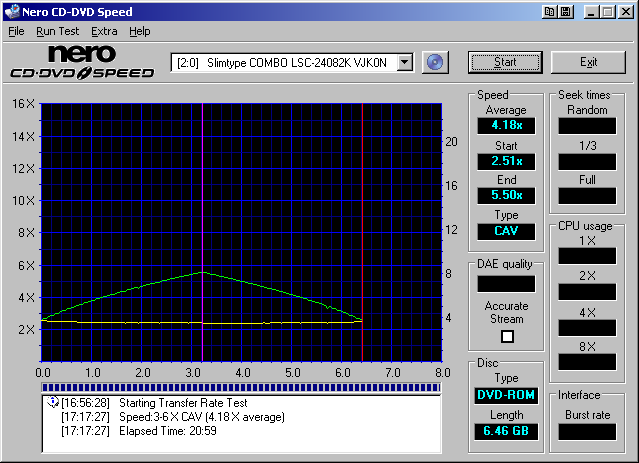

Reading curves:

Last edited by wesociety; 23-07-2004 at 07:07.
default_avatar
Today (MyCE Staff)
Posts: 15,596
Old Posted: 19-08-2004
Wesociety's Avatar
Wesociety (CD Freak)
Posts: 5,230
  • Find More Posts by Wesociety
Writer: NEC 2500A
Firmware: Special Herrie fw with Ritek DVD+R DL support added using RICOH DL strategy.
Contents: 7.2GB Matrix Revolutions backup.

Code:
---------------------------------------------------------------------------
Unique Disc Identifier : [DVD+R-DL:RITEK-D01-001]
---------------------------------------------------------------------------
Disc Type :              [DVD+R DL]
Manufacturer ID :        [RITEK]
Manufacturer Name :      [Manufacturer ID Not Found In Database]
Media Type ID :          [D01]
Product Revision :       [001]
Disc Application Code :  [General Purpose]
Recording Speeds :       [1x , 2.4x]
Blank Disc Capacity :    [4,173,824 Sectors = 8,152.0MB = 7.96GB (8.55GB)]
---------------------------------------------------------------------------
** INFO : An Empty Writable Disc Is Recommended For Accurate Results
** INFO : Drive = _NEC DVD_RW ND-2500A [FW 1.07]
** INFO : Write Capabilities = DVD+R DVD+R-DL DVD+RW DVD-R DVD-RW
** INFO : Disc = [DVD+R-DL:RITEK-D01-001]
** INFO : Book Type = [DVD-ROM]
** INFO : Write Speeds (Supported By This Drive On This Disc) Listed Below

** INFO : GET PERFORMANCE Write Speed Descriptor(s)
Descriptor #1 =  3245 KBPS ( 2.40x) - [CLV/Non-Pure CAV]

** INFO : MODE SENSE Write Speed Descriptor(s) [Legacy Command]
Descriptor #1 =  5645 KBPS ( 4.00x) - [CLV/Non-Pure CAV]
Descriptor #2 =  4234 KBPS ( 3.06x) - [CLV/Non-Pure CAV] - [Invalid Entry]
Descriptor #3 =  3528 KBPS ( 2.40x) - [CLV/Non-Pure CAV]
Descriptor #4 =  2822 KBPS ( 2.04x) - [CLV/Non-Pure CAV] - [Invalid Entry]
Descriptor #5 =  1411 KBPS ( 1.00x) - [CLV/Non-Pure CAV]
Descriptor #6 =   706 KBPS ( 0.51x) - [CLV/Non-Pure CAV] - [Invalid Entry]
** WARNING : Drive May Have Returned Incorrect Descriptors
---------------------------------------------------------------------------
** INFO : Hex Dump Of 'Media Code'-Block Listed Below
** INFO : 4-Byte Header Preceding 'Media Code'-Block Discarded
** INFO : Format 11h (Method 1) - ADIP Information
0000 : e1 0f 32 10 00 03 00 00  00 fc ff ff 00 22 d7 ff   ..2.........."..
0010 : 00 00 00 52 49 54 45 4b  00 00 00 44 30 31 01 40   ...RITEK...D01.@
0020 : 25 25 37 00 00 28 64 00  28 64 14 14 0a 0a 0a 0a   %7..(d.(d......
0030 : 01 00 00 00 00 19 1b 0b  0b 0e 0f 01 00 00 00 00   ................
0040 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
0050 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
0060 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
0070 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
0080 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
0090 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
00a0 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
00b0 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
00c0 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
00d0 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
00e0 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
00f0 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
---------------------------------------------------------------------------
[ DVD Identifier - http://DVD.Identifier.CDfreaks.com ]
---------------------------------------------------------------------------
Attached Images
File Type: png MTX3_RITEKDL_RITEKD01_D2.PNG (11.4 KB, 3349 views)
__________________
DVDRentalForums.com Netflix, Blockbuster & other DVD rental services discussion community
WesleyTech.com Blu-ray, HD DVD & optical storage blog
~
My Articles: Copy Blu-ray Backup Blu-ray
Last edited by Wesociety; 05-12-2004 at 21:46.
Old Posted: 09-11-2004
Clany's Avatar
Clany (CD Freaks Senior Member)
Posts: 445
  • Find More Posts by Clany
Could someone say me if it is a good scan or a bad scan ?

Traxdata DVD+R DL burned at 2,4x with LiteOn SOHW-832S VS0B:
-Booktype set to DVD-Rom

Code:
                            Media Information
Region information                                    N/A not a DVD-VIDEO
Media code/Manufacturer ID                                    RITEK   D01
Media Product Revision Number                                         01h
Format Capacity                                            7.67GB(8.24GB)
Book Type                                                         DVD-ROM
Media Type                                                       DVD+R DL
Data area starting sector                                          30000h
Data area end sector                                              3D5F2Fh
Layer 0 end sector                                                21AF9Fh
Linear Density                                                0.293um/bit
Track Density                                                0.74um/track
Number of Layers                                                        2
Layer Track Path direction                      (OTP) Opposite track path

                           Complete Media Code
00000000 08 02 00 00 01 0F 31 10 00 03 00 00 00 FC FF EF ......1.........
00000010 00 21 AF 9F 00 00 00 52 49 54 45 4B 00 00 00 44 .!.....RITEK...D
00000020 30 31 01 40 25 25 37 00 00 28 64 00 28 64 19 1B 01.@%%7..(d.(d..
00000030 0B 0B 0E 0F 01 00 00 00 00 19 1B 0B 0B 0E 0F 01 ................

Date                     : 09.11.2004 16:04:14
Model                    : 0-0-2-0 E:LITE-ON DVDRW SOHW-832S  VS0B
Disc                     : DVD+R DL , RITEKD01 [RiTEK Corporation]
Speed                    : 4x
ECC blocks sum (PI/PIF)  : 8/1
Scanned range            : 0 - 4022061
Sampling count           : 227633
Errors                   : 0
PI Max                   : 75
PI Average               : 24,87
PI Total                 : 734641
PIF Max                  : 14
PIF Average              : 1,18
PIF Total                : 34820
Transfer Rate Test follows..
Attached Images
File Type: png Ritek DVD+R DL at VS0B-832S.PNG (12.1 KB, 3080 views)
Last edited by Clany; 09-11-2004 at 17:36.
Old Posted: 09-11-2004
Clany's Avatar
Clany (CD Freaks Senior Member)
Posts: 445
  • Find More Posts by Clany
Ok here now the TransferRate Test with Nero CD/DVD Speed as mentioned above:
Next that follows is the CRC Error test with DVDinfoPro.... (i'll test the DVD with my LG 8162B its not the best reader but it reads disc with average quality perfectly)
edit: please set the edit msg time higher the 30mins time limit is simply annoying.
Old Posted: 09-11-2004
Clany's Avatar
Clany (CD Freaks Senior Member)
Posts: 445
  • Find More Posts by Clany
OK here now the Error checking with DVDINFOPRO seems like a good burn when my cheap GDR8162B can read it without errors...
Attached Images
File Type: jpg CRC check Reader GDR8162B DVD+R DL.jpg (81.4 KB, 3035 views)
Old Posted: 02-05-2005
Flash56's Avatar
Flash56 (CD Freaks Member)
Posts: 104
  • Find More Posts by Flash56
TuffDisc 2.4x DVD+R D/L RITEKD01
This is the first TuffDisc I have had my hands on
Burnt on my Pioneer DVR-109 f/w 1.40 at the rated speed of 2.4x
For this test I created a 7.95gig copy-write free Title Set with a 500meg section in the middle of the title set so that I could easily locate the layer transition.
7.96gigs is the maximum size of DVD+R D/L media.
I burnt the title set with Roxio Disc Copier at 2.4x speed in about 45minutes
Code:
                            Media Information
Region information                                    N/A not a DVD-VIDEO
Media code/Manufacturer ID                                    RITEK   D01
Media Product Revision Number                                         01h
Format Capacity                                                Blank Disc
Free Blocks                                                    4253024256
Free Capacity                                              7.96GB(8.55GB)
Book Type                                                        DVD+R DL
Media Type                                                       DVD+R DL
Manufacturer Rated Speed                                    2.4x 3324KBps
Available Write Descriptor                           CLV  2.4x   3324KBps
Data area starting sector                                          30000h
Layer 0 end sector                                                22D7FFh
Linear Density                                                0.293um/bit
Track Density                                                0.74um/track
Number of Layers                                                        2
Layer Track Path direction                      (OTP) Opposite track path

                           Complete Media Code
00000000 08 02 00 00 E1 0F 32 10 00 03 00 00 00 FC FF FF ......2.........
00000010 00 22 D7 FF 00 00 00 52 49 54 45 4B 00 00 00 44 .".....RITEK...D
00000020 30 31 01 40 25 25 37 00 00 28 64 00 28 64 19 1B 01.@%%7..(d.(d..
00000030 0B 0B 0E 0F 01 00 00 00 00 19 1B 0B 0B 0E 0F 01 ................



The spikes in this scan are typical of the scans I get with the 109 I prefer to use the BenQ Dw1620 for D/L scans but alas I no longer have one in my possesion. I expect a replacement Benq drive later this week and will substitute this scan with the BenQ scan.

These discs are also sold under the Datasafe, Datawrite & RiDisc brand names
Playback in my DK Digital DVD player is excellent with just the minor glitch at the layer transition point which I have come to expect with this player and D/L media
__________________
http://www.dshirt.co.uk
http://flashman.rpc1.org
http://www.dvd-recordable.org
THESE ARE MY OWN OPINIONS
I TAKE NO RESPONSIBILITY FOR ANY WAY THEY ARE INTERPRETED
Old Posted: 29-05-2005
default_avatar
DieseI (CD Freaks Member)
Posts: 134
  • Find More Posts by DieseI
Sold as Traxdata DVD+R DL 2.4x.
Code:
                           Complete Media Code
00000000 08 02 00 00 01 0F 32 10 00 03 00 00 00 FC F1 7F ......2.........
00000010 00 22 CB 9F 00 00 00 52 49 54 45 4B 00 00 00 44 .".....RITEK...D
00000020 30 31 01 40 25 25 37 00 00 28 64 00 28 64 19 1B 01.@%%7..(d.(d..
00000030 0B 0B 0E 0F 01 00 00 00 00 19 1B 0B 0B 0E 0F 01 ................
Burned with Plextor PX-716A #0207 @4x with PR on, AS on. Size - 8132 MB.

An expensive coaster! 0.92% unreadable. I should stick with Verbatim DL media.

Attached Images
File Type: png Ritek.D01.DL.DVD+R.2.4.burned.@4x.PNG (48.1 KB, 3496 views)
Old Posted: 05-06-2005
aviationwiz's Avatar
aviationwiz (CD Freaks Member)
Posts: 179
  • Find More Posts by aviationwiz
RiData 2.4x DVD+R DL on PX-716A, firmware 1.06, TLA 0306, at 4x.

Code:
---------------------------------------------------------------------------
Unique Disc Identifier : [DVD+R-DL:RITEK-D01-001]
---------------------------------------------------------------------------
Disc & Book Type :       [DVD+R DL] - [DVD-ROM]
Manufacturer Name :      [Ritek Corp.]
Manufacturer ID :        [RITEK]
Media Type ID :          [D01]
Product Revision :       [001]
Blank Disc Capacity :    [4,173,824 Sectors = 8,152.0MB = 7.96GB (8.55GB)]
Recording Speeds :       [1x , 2.4x]
---------------------------------------------------------------------------
[ DVD Identifier - http://DVD.Identifier.CDfreaks.com ]
---------------------------------------------------------------------------
Attached Images
File Type: png pxview_ridata_716_4x.PNG (88.2 KB, 2552 views)
File Type: png ridata_4x.png (16.3 KB, 2537 views)
Old Posted: 09-06-2005
engine's Avatar
engine (CD Freaks Senior Member)
Posts: 461
  • Find More Posts by engine
Sold as Ridisc 2.4X DVD+DL media.

Burned at 2.4X on Lite-ON SOHW-832S VS0G stock firmware.

---------------------------------------------------------------------------
Unique Disc Identifier : [DVD+R-DL:RITEK-D01-001]
---------------------------------------------------------------------------
Disc & Book Type : [DVD+R DL] - [DVD+R DL]
Manufacturer Name : [Ritek Corp.]
Manufacturer ID : [RITEK]
Media Type ID : [D01]
Product Revision : [001]
Blank Disc Capacity : [4,173,824 Sectors = 8,152.0MB = 7.96GB (8.55GB)]
Recording Speeds : [1x , 2.4x]
---------------------------------------------------------------------------
[ DVD Identifier - http://DVD.Identifier.CDfreaks.com ]
---------------------------------------------------------------------------

Code:
0000 : e1 0f 32 10 00 03 00 00  00 fc ff ff 00 22 d7 ff   ..2.........."..
0010 : 00 00 00 52 49 54 45 4b  00 00 00 44 30 31 01 40   ...RITEK...D01.@
0020 : 25 25 37 00 00 28 64 00  28 64 19 1b 0b 0b 0e 0f   %7..(d.(d......
0030 : 01 00 00 00 00 19 1b 0b  0b 0e 0f 01 00 00 00 00   ................
1) PI/PIF Scan on Lite-ON SOHW-832S

2) Surface Scan on Lite-ON SOHW-832S

3) Transfer test on NEC ND-3540A

4) Trasnfer test on JLMS XJ-HD 166S
Attached Images
File Type: png VS0G_Stock_RITEK_D01_B8X.PNG (12.0 KB, 2522 views)
File Type: png VS0G_Stock_RITEK_D01_B8X_Surface_Scan.png (21.1 KB, 2500 views)
File Type: png VS0G_Stock_RITEK_D01_B8X_Transfer2.png (34.0 KB, 2505 views)
File Type: png VS0G_Stock_RITEK_D01_B8X_Transfer.png (31.6 KB, 2489 views)
__________________
Lite-On SHW-16H5S
Optiarc AD-7201A
Old Posted: 09-06-2005
engine's Avatar
engine (CD Freaks Senior Member)
Posts: 461
  • Find More Posts by engine
Sold as Ridisc 2.4X DVD+DL media.

Burned at 2.5X on NEC ND-3540A 1.01 stock firmware.

---------------------------------------------------------------------------
Unique Disc Identifier : [DVD+R-DL:RITEK-D01-001]
---------------------------------------------------------------------------
Disc & Book Type : [DVD+R DL] - [DVD+R DL]
Manufacturer Name : [Ritek Corp.]
Manufacturer ID : [RITEK]
Media Type ID : [D01]
Product Revision : [001]
Blank Disc Capacity : [4,173,824 Sectors = 8,152.0MB = 7.96GB (8.55GB)]
Recording Speeds : [1x , 2.4x]
---------------------------------------------------------------------------
[ DVD Identifier - http://DVD.Identifier.CDfreaks.com ]
---------------------------------------------------------------------------

Code:
0000 : e1 0f 32 10 00 03 00 00  00 fc ff ff 00 22 d7 ff   ..2.........."..
0010 : 00 00 00 52 49 54 45 4b  00 00 00 44 30 31 01 40   ...RITEK...D01.@
0020 : 25 25 37 00 00 28 64 00  28 64 19 1b 0b 0b 0e 0f   %7..(d.(d......
0030 : 01 00 00 00 00 19 1b 0b  0b 0e 0f 01 00 00 00 00   ................
None of my three drives is able to read this disc!

1) PI/PIF Scan on Lite-ON SOHW-832S

2) Surface Scan on Lite-ON SOHW-832S
Attached Images
File Type: png 1.01_Stock_RITEK_D01_B2.4X.PNG (12.2 KB, 2507 views)
File Type: png 1.01_Stock_RITEK_D01_B2.4X_Surface_Scan.png (21.3 KB, 2494 views)
__________________
Lite-On SHW-16H5S
Optiarc AD-7201A
Old Posted: 23-06-2005
default_avatar
PhotoJim (CD Freaks Senior Member)
Posts: 282
  • Find More Posts by PhotoJim
Burned on LG GSA-4163B v104 (first image) and BenQ DW1620a B7V9(second image). Consistent at least. I'll try Verbatim media next.
__________________
Samsung SH-S223Q
Verbatim Producer 44 (NEC ND-1300A external) (1.0C bitsetting-modded)
Samsung SH-S162L (TS06)
BenQ DW1620a (B7W9)
LG GSA-4163B (A106)
NEC ND-6500A (in my notebook PC) (2.24)
CyberDrive DX082d (150B)
BenQ CRW5232
TDK VeloCD USB 2.0 external
Yamaha CRW-8824E (1.0a)
Ricoh 6201S SCSI
Old Posted: 05-09-2005
cnlson's Avatar
cnlson (CDFreaks Resident)
Posts: 2,225
  • Find More Posts by cnlson
burned in a NEC3540 firm 1.w5 7.7 GB data disc burned @ 2.4x
sold as memorex 2.4x DL
HTML Code:
----------------------------------------------------------------------------
Unique Disc Identifier : [DVD+R-DL:RITEK-D01-001]
----------------------------------------------------------------------------
Disc & Book Type :       [DVD+R DL] - [DVD-ROM]
Manufacturer Name :      [Ritek Corp.]
Manufacturer ID :        [RITEK]
Media Type ID :          [D01]
Product Revision :       [001]
Blank Disc Capacity :    [4,173,824 Sectors = 8.55 GB (7.96 GiB)]
Recording Speeds :       []
----------------------------------------------------------------------------
** INFO : Drive = _NEC DVD_RW ND-3500AG [FW 2.TB]
** INFO : Write Capabilities = DVD+R DVD+R-DL DVD+RW
** INFO : Write Capabilities = DVD-R DVD-RW
** INFO : Disc = [DVD+R-DL:RITEK-D01-001]
** INFO : Reference Speed : 1x DVD = 1385 kBps
** INFO : An Writeable Disc Is Recommended For Accurate Results
** INFO : Write Speeds (Supported By This Drive On This Disc) Listed Below

** INFO : GET PERFORMANCE Write Speed Descriptor(s)
Descriptor #1 =  5540 kBps ( 4.00x) - [CLV/Non-Pure CAV]
Descriptor #2 =  3324 kBps ( 2.40x) - [CLV/Non-Pure CAV]
----------------------------------------------------------------------------
** INFO : Hex Dump Of 'Media Code'-Block Listed Below
** INFO : 4-Byte Header Preceding 'Media Code'-Block Discarded
** INFO : Format 11h (Method 1) - ADIP Information
0000 : e1 0f 32 10 00 03 00 00  00 fc ff ff 00 22 d7 ff   ..2.........."..
0010 : 00 00 00 52 49 54 45 4b  00 00 00 44 30 31 01 40   ...RITEK...D01.@
0020 : 25 25 37 0c 00 28 64 00  28 64 20 1f 0c 0c 14 14   %7..(d.(d .....
0030 : 02 01 01 20 00 20 1f 0c  0c 14 14 02 00 00 00 00   ... . ..........
0040 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
0050 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
0060 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
0070 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
0080 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
0090 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
00a0 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
00b0 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
00c0 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
00d0 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
00e0 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
00f0 : 00 00 00 00 00 00 00 00                            ........
----------------------------------------------------------------------------
[ DVD Identifier - http://DVD.Identifier.CDfreaks.com ]
----------------------------------------------------------------------------
__________________
When you flirt with death, you run the risk that death has something more serious in mind.

-- Current optical hardware
  • Maddog Megastor 16x (Nec 3500) x2
  • Nec 3540
  • Liteon 1633 USB Ext (scanning and ripping only)
  • Liteon 48161H
  • Liteon 52246 USB Ext
-- Retired:
  • Maddog DOMINATOR 8x (Nec 2500) x2
  • benq 1620 (returned) nice catch quickee , 4012EU
  • Liteon 811s, 411s, 48161H usb 2.0 ext, 52246, 48246, 40125, ltd-163
  • LG 8400, 8163
  • Plex r820ti
  • S& F Rocket RW (Sanyo RW1) Ext Scsi x 2,SpeedWriter 4012 (teac r55s) Ext Scsi
  • Hp 7200E
Old Posted: 05-09-2005
cnlson's Avatar
cnlson (CDFreaks Resident)
Posts: 2,225
  • Find More Posts by cnlson
burned in nec3500 Firm 2.TB 6.81 Data disc burned @ 4x
sold as memorex 2.4x DL
HTML Code:
----------------------------------------------------------------------------
Unique Disc Identifier : [DVD+R-DL:RITEK-D01-001]
----------------------------------------------------------------------------
Disc & Book Type :       [DVD+R DL] - [DVD-ROM]
Manufacturer Name :      [Ritek Corp.]
Manufacturer ID :        [RITEK]
Media Type ID :          [D01]
Product Revision :       [001]
Blank Disc Capacity :    [4,173,824 Sectors = 8.55 GB (7.96 GiB)]
Recording Speeds :       []
----------------------------------------------------------------------------
** INFO : Drive = _NEC DVD_RW ND-3500AG [FW 2.TB]
** INFO : Write Capabilities = DVD+R DVD+R-DL DVD+RW
** INFO : Write Capabilities = DVD-R DVD-RW
** INFO : Disc = [DVD+R-DL:RITEK-D01-001]
** INFO : Reference Speed : 1x DVD = 1385 kBps
** INFO : An Writeable Disc Is Recommended For Accurate Results
** INFO : Write Speeds (Supported By This Drive On This Disc) Listed Below

** INFO : GET PERFORMANCE Write Speed Descriptor(s)
Descriptor #1 =  5540 kBps ( 4.00x) - [CLV/Non-Pure CAV]
Descriptor #2 =  3324 kBps ( 2.40x) - [CLV/Non-Pure CAV]
----------------------------------------------------------------------------
** INFO : Hex Dump Of 'Media Code'-Block Listed Below
** INFO : 4-Byte Header Preceding 'Media Code'-Block Discarded
** INFO : Format 11h (Method 1) - ADIP Information
0000 : e1 0f 32 10 00 03 00 00  00 fc ff ff 00 22 d7 ff   ..2.........."..
0010 : 00 00 00 52 49 54 45 4b  00 00 00 44 30 31 01 40   ...RITEK...D01.@
0020 : 25 25 37 0c 00 28 64 00  28 64 20 1f 0c 0c 14 14   %7..(d.(d .....
0030 : 02 01 01 20 00 20 1f 0c  0c 14 14 02 00 00 00 00   ... . ..........
0040 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
0050 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
0060 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
0070 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
0080 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
0090 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
00a0 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
00b0 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
00c0 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
00d0 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
00e0 : 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00   ................
00f0 : 00 00 00 00 00 00 00 00                            ........
----------------------------------------------------------------------------
[ DVD Identifier - http://DVD.Identifier.CDfreaks.com ]
----------------------------------------------------------------------------
Attached Images
File Type: png 04-September-2005_07_56_RITEK_D01.png (29.2 KB, 2300 views)
File Type: png LITE-ON_COMBO_LTC-48161H_RITEK_D01_04-September-2005_23_33.png (48.0 KB, 2298 views)
File Type: png Ritek d01 090405.PNG (12.2 KB, 2293 views)
__________________
When you flirt with death, you run the risk that death has something more serious in mind.

-- Current optical hardware
  • Maddog Megastor 16x (Nec 3500) x2
  • Nec 3540
  • Liteon 1633 USB Ext (scanning and ripping only)
  • Liteon 48161H
  • Liteon 52246 USB Ext
-- Retired:
  • Maddog DOMINATOR 8x (Nec 2500) x2
  • benq 1620 (returned) nice catch quickee , 4012EU
  • Liteon 811s, 411s, 48161H usb 2.0 ext, 52246, 48246, 40125, ltd-163
  • LG 8400, 8163
  • Plex r820ti
  • S& F Rocket RW (Sanyo RW1) Ext Scsi x 2,SpeedWriter 4012 (teac r55s) Ext Scsi
  • Hp 7200E
Old Posted: 06-09-2005
default_avatar
kowanski (New on Forum)
Posts: 28
  • Find More Posts by kowanski
Burned in a BENQ 1640 firmware BSLB disc burned @ 2.4x
Sold as PLATINUM 2.4x DL
Attached Images
File Type: png Ritek-x2,4-BSLB-test.png (15.2 KB, 2254 views)
Old Posted: 11-09-2005
andreapappy's Avatar
andreapappy (CD Freaks Member)
Posts: 233
  • Find More Posts by andreapappy
RITEKD01 burned with 4163_A105 and 3500_2.TG
At least the one burned with NEC is readable

First couple of pic refers to 4163
Burned with nero, files backup
__________________

====================================
NEC ND3500AG ( 2.TG )
LITEON SOHW-1653 ( CSOR )
====================================
NEC ND4550A ( 1.X7 )
NEC ND4571A ( 1.21 )
LG GSA-4166B (1.02)
====================================
Old Posted: 08-10-2005
default_avatar
genen (New on Forum)
Posts: 7
  • Find More Posts by genen
Written at 4X on a NEC 3500AG


General Information
Drive: BENQ DVD DD DW1640
Firmware: BSLB
Disc: DVD+R DL (RITEK D01)
Selected speed: Maximum
PI errors
Maximum: 157
Average: 37.15
Total: 886484
PI failures
Maximum: 19
Average: 2.04
Total: 41123
PO failures: 0
Jitter
Maximum: 16.3 %
Average: 10.95 %
Scanning Statistics
Elapsed time: 16:21
Number of samples: 27945
Average scanning interval: 8.01 ECC
Glitches removed: 0
Old Posted: 11-10-2005
default_avatar
yxy (CD Freaks Junior Member)
Posts: 74
  • Find More Posts by yxy
Sold as Memorex
NEC 3540A 1.W7
2 ISOs burned at 2.4X
scaned at 8X ECC


The end always ruins the quality scan
Disc1
Disc1

Disc2
Disc2
Last edited by yxy; 11-10-2005 at 09:16.
Old Posted: 12-10-2005
default_avatar
yxy (CD Freaks Junior Member)
Posts: 74
  • Find More Posts by yxy
Sold as Memorex 2.4X DVD+R DL
Plextor 716A 1.08 in Oxford911 firewire enclosure
5.7GB ISO burned at 4X
bitsetting DVDROM

scan with NEC3540A 1.W7 @ 8X ECC
good enough for me
Attached Images
File Type: jpg DL3_1.jpg (95.1 KB, 2024 views)
File Type: jpg DL3_2.jpg (89.4 KB, 2009 views)
Old Posted: 18-04-2006
gregtherotterius's Avatar
gregtherotterius (CDFreaks Resident)
Posts: 1,781
  • Find More Posts by gregtherotterius
RITEK D01 - 7GB
SONY DRX -800UL f/w KY06
Burnt @2.4X
Software: N/A
-----
Sold as: Tuffdisc Dual Layer discs
-----

Comments: best scan I've got with this media/burner combination.

__________________
Member of http://forums.minidisc.org/index.php?
My rig:
Sony cmt-se1/NEC WGX2 hooked up to mds-jb980/hooked up to optical out of Asus A8N-SLI premium mobo=my comp=jukebox.
Headphones: Audio Technica ATH-A900
http://img.photobucket.com/albums/v3...tled-small.gif
AMD X2 4600, 1 x EVGA 8800GTX, A8N-SLI Premium mobo, 2 x 1gb corsair value ram, 1 x 250gb Seagate 7200.9rpm SATAII hdd, 1 x 10KRPM WD Raptor 75gb
Drives: Writing: SL: Sony DRX-800UL// BenQ 1650//Pioneer DVR-111
DL:BenQ 1650//Sony DRX-800UL//Pioneer DVR-111
Last edited by Wizzu; 19-04-2006 at 04:37.
Old Posted: 01-09-2006
default_avatar
BB88 (CD Freaks Member)
Posts: 131
  • Find More Posts by BB88
LG GSA-H10A JL03 , 7910 MB burned to disc

Burner: LG GSA-H10A (JL03)
Speed: 2.4x
Booktype: DVD-ROM
Program: Nero 6.6.1.4
Reader: Liteon 451@832 (CG5J)

Disc sold as Fujifilm

Disc Type DVD+R DL
Book Type DVD-ROM
Manufacturer RiTEK Corporation
Media ID RITEKD01
Protection System None
Region 1,2,3,4,5,6,7,8
Capacity 7.72 GB
Layer 0 Capacity 3.86 GB
Free Size 0.00 GB
Free Blocks 0
Number of Layers 2
Track Path OTP
Linear Density 0.293 um/bit
Track Density 0.74 um/track
Maximum Read Speed 8.8x
Maximum Write Speed 2.4x
Current Write Speed 2.4x CLV
Write Speed Performance Descriptor 1 2.4x CLV

****************************************

My stanealone DVD players Apex 1000 and Philips DV642 reads them, but have trouble playing it and stop eventually.
Attached Images
File Type: png LG_H10A_Fujitfilm_RitekD01_DVD+R_DL.PNG (20.2 KB, 1577 views)
__________________
LITEON LTR-52327S (QS0E)
LITEON LDW-451S@832S (CG5J)
LITEON SHM-165H6S (HS0E)
BenQ DD DW1650 (BCIC)
Last edited by DrageMester; 01-09-2006 at 14:49. Reason: Format
Old Posted: 03-09-2006
default_avatar
CBMC (CD Freaks Member)
Posts: 118
  • Find More Posts by CBMC
Sony DRU-800A (fw??) , 7082 MB

I bought a pack of the ritek DL discs. I must say that they SUCK!!! I will post a scan when I get home....But I can say that they don't play real well on my standalone dvd player...Often times ending up freezing at some times. And definitely a lot of legos. I burnt these on my Sony Dru-800A. I have yet to burn any on my pioneer 111 or my Liteon 165H6S, but I do still have about 18 discs left...So I will post a scan of the media burnt on those drives when I burn them. But like many have said before: STAY AWAY FROM RITEK...ESPECIALLY THE DL(and the 16x +R too). Come to think of it, stick with Taiyo Yuden or Verbatim.(Again, I know everyone knows that on this forum)

Here is a scan of the crappy media...
Attached Images
File Type: png DLSCAN.png (45.8 KB, 1539 views)
File Type: png DLBENCHMARK.png (46.2 KB, 1527 views)
Last edited by DrageMester; 03-09-2006 at 13:35. Reason: Format and copied info from previous post
Old Posted: 06-09-2006
default_avatar
vitormsm (CD Freaks Rookie)
Posts: 44
  • Find More Posts by vitormsm
Burner: BenQ 1620 B7W9, 7735MB Dual Layer Disc
Disc: Memorex branded RITEK DVD+R DL 2.4x (RITEKD01)

This one is quite crappy, but my NEC DVD-ROM DV5800 had no problem reading it.
Old Posted: 09-09-2006
default_avatar
Legnerp (CD Freaks Senior Member)
Posts: 401
  • Find More Posts by Legnerp
NEC ND-3520AW 3.07, 7713MB burned to disk

This one is sold by Memorex Products Europe.
Old Posted: 09-09-2006
default_avatar
BB88 (CD Freaks Member)
Posts: 131
  • Find More Posts by BB88
LiteOn SHM-165H6S HS0E , 7910 MB burned to disc

Burner: Liteon 165H6S (HS0E)
Speed: 4x (Overspeed)
Software: Nero 6.6.1.4
Booktype: DVD-ROM

Burned media shows as blank on the computer, and "No Disc" on stanealone DVD player

When I burned at 2.4x, it fails to burn right after the layer break
Attached Images
File Type: png Liteon_165H6S_Fujitfilm_RitekD01_DVD+R_DL.PNG (19.6 KB, 1483 views)
__________________
LITEON LTR-52327S (QS0E)
LITEON LDW-451S@832S (CG5J)
LITEON SHM-165H6S (HS0E)
BenQ DD DW1650 (BCIC)
Old Posted: 13-11-2006
default_avatar
SleepyBum (CD Freaks Rookie)
Posts: 33
  • Find More Posts by SleepyBum
Burned at 2.4x on Sony 810-R->BenQ 1650 BCIC, 6720 MB
RITEK D01 (001)
Sold as Office Depot 2.4x DVD+R DL 25pk, Made in Taiwan

---------------------------------------------------------------------------
Unique Disc Identifier : [DVD+R-DL:RITEK-D01-001]
---------------------------------------------------------------------------
Disc & Book Type : [DVD+R DL] - [Not Available]
Manufacturer Name : [Ritek Corp.]
Manufacturer ID : [RITEK]
Media Type ID : [D01]
Product Revision : [001]
Blank Disc Capacity : [4,173,824 Sectors = 8,152.0MB = 7.96GB (8.55GB)]
Recording Speeds : [1x , 2.4x]
---------------------------------------------------------------------------
[ DVD Identifier - http://DVD.Identifier.CDfreaks.com ]
---------------------------------------------------------------------------

** INFO : Hex Dump Of 'Media Code'-Block Listed Below
** INFO : 4-Byte Header Preceding 'Media Code'-Block Discarded
** INFO : Format 11h (Method 1) - ADIP Information
0000 : e1 0f 32 10 00 03 00 00 00 fc ff ff 00 22 d7 ff ..2.........."..
0010 : 00 00 00 52 49 54 45 4b 00 00 00 44 30 31 01 40 ...RITEK...D01.@
0020 : 25 25 37 0c 00 28 64 00 28 64 20 1f 0c 0c 14 14 %7..(d.(d .....
0030 : 02 01 01 20 00 20 1f 0c 0c 14 14 02 01 01 20 00 ... . ........ .
0040 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
There's more to MyCE.com

Listen up, we've got more. Product information on 107,830 products. Our experts have written 540 articles. We've gathered 16,487 news items for you to always keep updated.

Hello guest,
default
To benefit from all extra features you need to log in or sign up.

Posting Rules

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts

Similar Threads

People who found this also searched for

  • 00392-61
  • dvd+r dl layer 0 capacity
  • lite-on ihas324 riteks04
  • pioneer dvr-118l firmware
  • ritek dvd-r dl media code
  • ritek s04 sumvision
  • ritek-d01-001
  • ritek-d01-01 layerbreak
  • rivision 2.4
  • rivision 2.4x forum
  • rivision dl
  • sh-s223q ridisc dl
  • 20a1s ritek s04 066
  • 3326 philips dvd player
  • 3520 dl
  • 5.7gb dvd-r
  • 5.7gb recordable dvd
  • apex ad-1010w burned dvds formats
  • apex ad1010 w firmware
  • arita 2.4x dl
  • arita d01
  • arita dl 112d
  • arita dl dvd cdfreaks
  • arita dvd dl
  • arita dvd r dl
  • arita dvd+r dl 2.4x
  • arita dvd+r dl 8.5gb
  • arita ritek 2.4x
  • arita ritek d01
  • arita ritek dvd+r 2.4x 8.5gb
All times are GMT +2. The time now is 19:45.
Top
