EEPROM Utility for PLDS/LiteOn/Sony CD & DVD Writers (v5.0.1) *NEW*

EEPROM Utility for PLDS/LiteOn/Sony/BenQ CD & DVD Writers
The Official Thread

What is it
We have developed a tool that makes backing up and restoring the EEPROM very simple. The EEPROM is a 1024, 4096 or 8192 byte non-volitile memory in the drive, which stores data that needs to be retained when the drive is de-powered. I suggest that everyone with a Liteon DVD drive should use this utility to make a backup of their EEPROM straight away (if you don't have one already) and make two copies for safe keeping. You may never need it but it's good to have just in case. If you have two drives, it's even more important, as it is very easy to write the EEPROM file to the wrong drive. This can kill a drive because each EEPROM has unique calibration data, that is set in the factory. MAKE A BACKUP NOW!!!! What have you got to lose.

Features
1/ Backup EEPROM.
2/ Restore EEPROM.
3/ Reset Learnt media calibration data (new method in v2).
4/ 4x1S to 811S EEPROM conversion, using ala42's conversion algorithm.
5/ EEPROM checksum repair.
6/ Supports backup and restore for CD-RW and DVD.
7/ Upgrade Drive function.
8/ Supports 5S and 6S EEPROMs
9/ Supports 16W1P, 16A7S, 16A1P, 18A1P/H, 20A1P/H/S/L EEPROMs
10/ Supports DW1680, DW1800, DW1805, DW1810, DW2000, DW2010, DW2050, DW200S EEPROMs
11/ Supports Blu-ray drives

New Features in v3.3
1/ 4KB backups for 5S and later models
2/ 4KB backups includes HyperTuning data
3/ Reset HyperTuning function

New Features in v3.5
1/ Slim drive IDE mode switching (Master/Slave)
2/ More upgrade options

New Features in v3.6
1/ Supports the new 8KB EEPROM size in the current models

New Features in v3.7
1/ Supports model changes for 18x and 20x drives from Lightscribe to non Lightscride models
2/ Officially supports the latest BenQ models listed below

New Features in v3.8
1/ 20A3 series 20x RPM tab to allow the checking and setting of the 20x RPM
2/ More upgrade options (see below)

New Features in v4.0
1/ Options tab for smartburn type options
2/ Bitsetting tab (some older drives not supported)
3/ Last drive selected is restored in the next session

New Features in v5.0
1/ Supports Blu-ray drives
2/ New Convert Drive function
3/ New Clear Media Learn function

New Convert Drive function
This exciting new crossflash feature reads the firmware to find out which model the drive is and changes the EEPROM to match the model it finds. The drive must first be flashed to the new firmware, which must be compatible with the drives hardware (chipset), and then this function used. The drive will become fully functional after a system power off, or if external, the external enclosure switched off.

This function can take a while to complete, as it looks at the firmware to find the drive model.

Please note: An SATA drive must be powered off to finish the conversion.

New Clear Media Learn function
This new version of the reset learnt media function, uses safe drive commands to clear both the learnt media and the hypertuning. The new clear media learn function may not work with some legacy drives (reports that it has failed and makes no changes), so if you still use an old drive, make sure you keep a copy of your previous version of the EEPROM Utitity, just in case.

BenQ Models Supported
DW1680
DW1800
DW1805
DW1810
DW2000
DW2010
DW2050
DW200S

Upgrade Drive

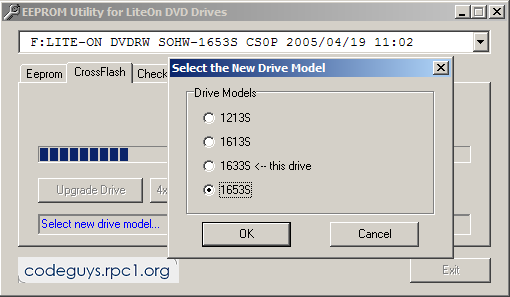

This function allows you to upgrade (or downgrade) your drive to any model that is supported by your drive's hardware. Once you have changed your drives model you will be able to use official firmware in your drive without any crossflash patching.
Supported upgrade drive sets:
* 451S <> 851S
* 812S <> 832S
* 862S <> 852S
* 1213S <> 1613S <> 1633S <> 1653S
* 1673S <> 1693S
* 160P6S <> 165P6S
* 160H6S <> 165H6S
* 16W1P <> 16A1P <> 18A1P <> 18A1H <> 20A1P <> 20A1H <> 20A1S <> 20A1L
* DW1680 <> DW1800 <> DW1810 <> DW2000 <> DW2010
* 16A3L <> 20A3L

Note:
* Crossflashing to LightScribe firmware will not give you the LightScribe feature, as index hardware is missing from a non LightScribe drive.
* 451S and 851S users wishing to crossflash to 812S or 832S should still use the OmniPatcher crossflash patch or use firmware already patched, as the hardware difference still requires the patch to allow the drive to work properly.










Note: Please understand that some functions are experimental, at this stage. Make sure you backup your eeprom first.

More information
Please read the documentation enclosed in the package for more details.

Compatibility
EEPROM files for this utility are compatible with other EEPROM utilities.

Credits
Special thanks goes to RPC1 (The Firmware Page) and the authors of Dvdzone and PLScsi, xvi, Pat LaVarre and ala42 for sharing his invaluable knowledge of the EEPROM. Without them, this utility would not have been possible.

Note: Do not use this utility on anything other than Liteon hardware.

Version: v5.0.1 (4 September 2009)
* iHAx122 9 EEPROM was incorrectly detected as a Blu-ray EEPROM
* Fixed, once a Blu-ray EEPROM was detected, all subsequence EEPROMs were treated as Blu-ray EEPROMs

Version: v5.0.0 (27 July 2009)
* Supports Blu-ray drives
* New Convert Drive function
* New Clear Media Learn function
* Removed some legacy functions

Version: v4.1.2 (28 April 2009)
* Supports the 24x drives
* Added upgrade (16A3L <> 20A3L)
* Does not wait for busy drives at program start

Version: v4.1.0 (11 October 2008)
* Added "Cable Select" and "Cable Select Inverted" to Slim drive mode switching

Version: v4.0.0 (4 August 2008)
* New Options tab (from Settings Utility)
* New Bitsetting tab (from Settings Utility)
* The last drive selected is restored the next time you start the EEPROM Utility

Version: v3.8.3 (11 November 2007)
* Improved support for new models

Version: v3.8.2 (29 October 2007)
* 20A3 series 20x RPM tab to allow the checking and setting of the 20x RPM

Version: v3.6.2 (26 January 2007)
* Supports the new 8KB EEPROM size in the current models
* Fixed a bug reading 4KB EEPROMs from slim drives

Version: v3.5.0 (21 December 2006)
* Slim drive IDE mode switching (Master/Slave)
* 160x6S to 165x6S upgrade
* Extended the default filename
* Other minor improvements

Version: v3.3.3 (24 April 2006)
* 4KB backup for 5S and 6S models
* 4KB backup includes HyperTuning data
* Reset HyperTuning function
* Minor bug fix in v3.3.3

Version: v3.2.4 (3 march 2006)
* Fixes an issue with 5S and 6S drives (if you have either of these drives please upgrade)
* The version number is now displayed in the title bar

---

Download: EEPROM Utility
Mirror: EEPROM Utility
Documents: Readme file

---

Acknowledgements:
We would like to thank the people in the community whose work, either directly or indirectly, have helped us do what we do: TheKeyMaker, xvi, The Dangerous Brothers, >NIL:, ala42, dhc014, etna, Dale, digi, and the author of KProbe.

Note: We've decide to allow requests for EEPROMs, when it's a genuine case of a lost/over written EEPROM and I guess this is as good a thread as any to do it in. Also note, we still don't know whether using an EEPROM file from another drive, can do damage to a drive it was not calibrated for. So only do this as a last resort!

---

Last edited by C0deKing; 04-09-2009 at 06:19. Reason: New version v5.0.1
